DEVICES
Coaters(NoaCoater®)
- NoaCoater for DES(Drug- eluting Stent)
- NoaCoater for Balloon
- NoaCoater for Artificial Blood Vessel
- NoaCoater for Blood Collection Tubing/Syringe
- Coating machines for various medical applications
Dip Coaters are used mainly for hydrophilic Coatings and hydrophobic coatings(teflon coating).
Their spec and design depends on coating process and coating solutions.

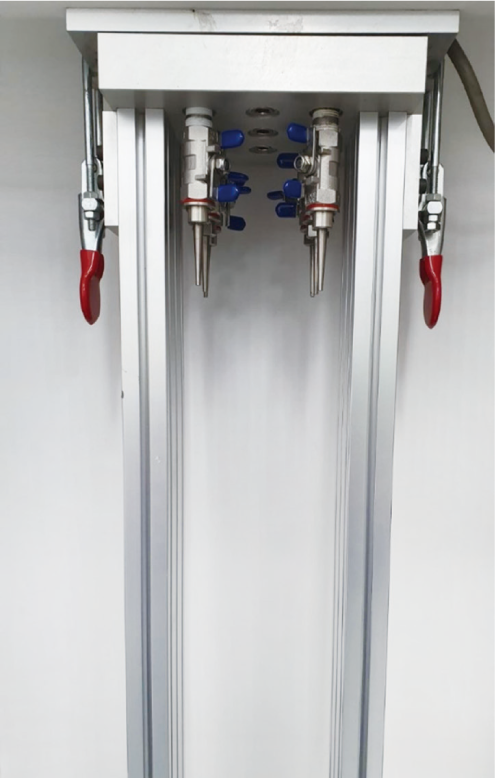

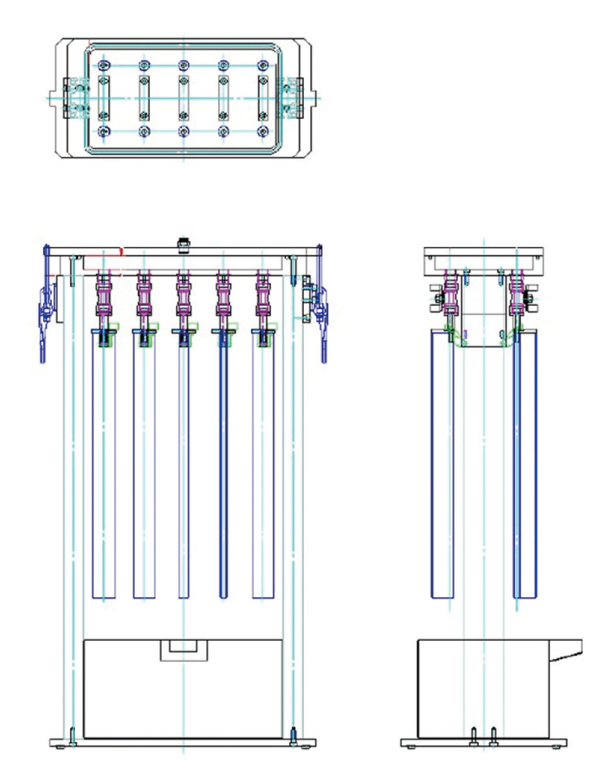

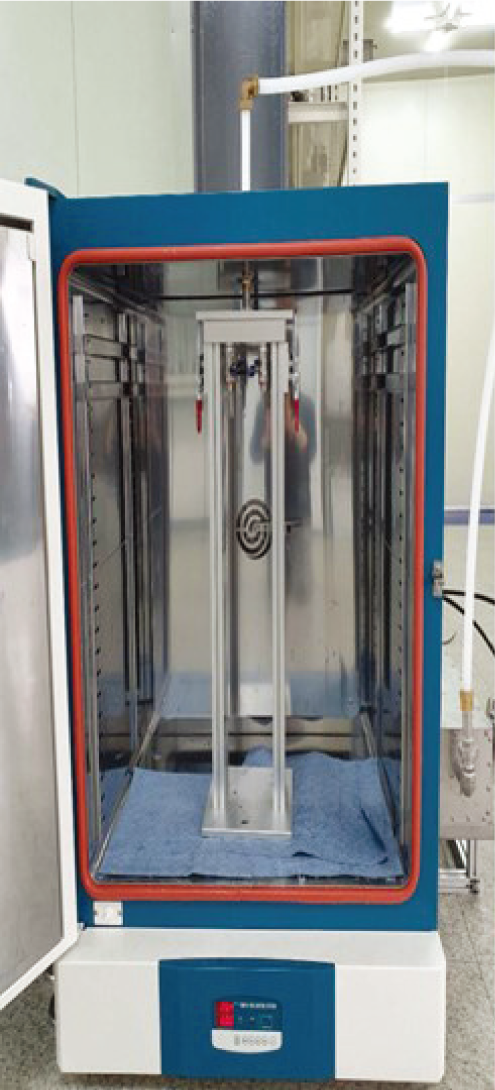

- Inner coater for internal coating
Model
Description
Internal Coating System for hydrophilic and
hydrophobic coatings(for one coating or two coating)
Includes
– Size of 950 x 750 x 1150(Customised)
– Produces 9 Tubes at one time(Customised)
– Self-drying/curing System
– For Inside Coating of medical devices
System Specifications
– Control : PID Control
– Reservoir Volume : 1.5 L (Customised)
– Device & Coating Length : max. 550mm (Customised)
– Coating Inner Diameter : 3~35mm(Customised)
Requirements
– Power : 110-220VAC, 50/60hz 20A(Customised)
– Air Operating : Minimum 20 psi
Housing Specifications
– Construction 316 stainless steel, aluminum
- System Design
– Uniform Pumping Deposition Chamber
– Q.C.M. Control & S/W
– Main Control S/W
– System Design & OEM Cold Trap.
Real time thickness monitoring by QCM(Option) Adhesion promoter injection(Option)
Fully Automatic Control by Recipe Storage & Good G.U.I by Touch PC
- Research Applications
-Organic / Inorganic hybrid material research
-Implant for medical devices
-Piezoelectric material research
-Electronics(dielectric layer, wave guide)
- DIMER
-FDX-CHO : 4-formyl-di-p-xylene
-FDX-COOH : 4-Carboxy-di-p-xylene
-FDX-CH2NH2 : 4-Aminomethyl-di-p-xylene
